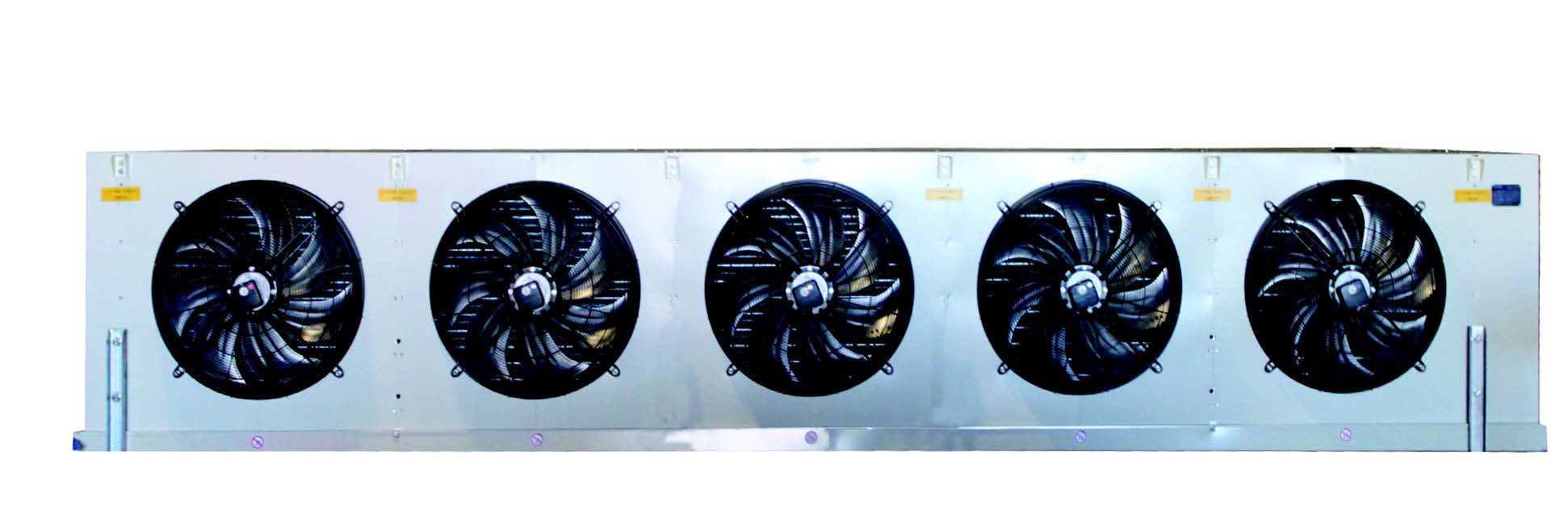

DUC-type is in industrial evaporator to use with Ammonia (NH3), most Freons or Brines. For conditions other than listed in this catalogue and other refrigerants please contact our office;
DUC units are long lasting, heavy duty, designed for storage and processing of meat, seafood, fruit, vegetables, dairy and other high-value perishable product;
Fan guards are fitted to all fans ensuring maximum protection and compliance with international standards;
Defrost can be through coil and tray as well as on the fans. Coil and tray defrost can be by air (A), water (W), hot gas (H) and/or electric heaters (E). Please specify type of coil defrost as well as the type of drain tray defrost required. Fan heaters (F) are also available for low temperature applications to keep fan cowling free of ice.
Coils are made of galvanized steel tubes and fins (G) or stainless tube (S) and aluminum (epoxy) fins and pressure tested to 3000kPa. Units are shipped with Nitrogen charge of 1000kPa pressure;
Fans (400V±10%, 3Ph, 50Hz) IP54 protection, with 2 speed operation. Induced draught standard unit are equipped with reliable Ziehl fans for greater control of ambient and lower noise and lower power consumption;
Fin spacing of 6.0(M), 8.0(L), 10.0(F), 12.0mm(B) are available as standard, yet 15.0mm spacing and multiple spacing are available on request;
Suitable Temperature of refrigerant ranges from +15 to -50ºC.
Shipping - all units are shipped with nitrogen charge of 1000kPa pressure. Pressure should be checked on receipt of unit and any significant variation should be immediately reported to our office. Gauge point with stop valve is provided with very unit on one of the refrigeration connections.
