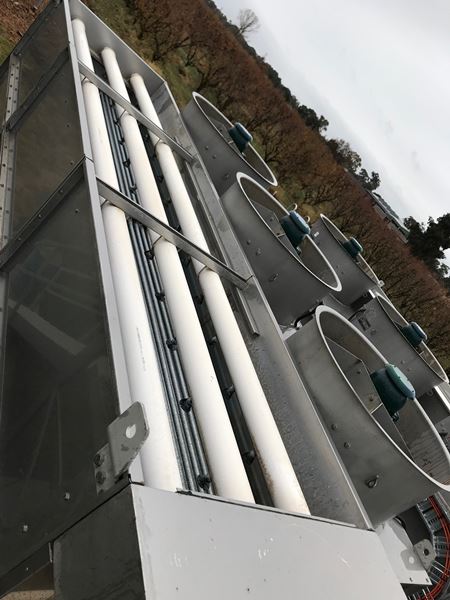

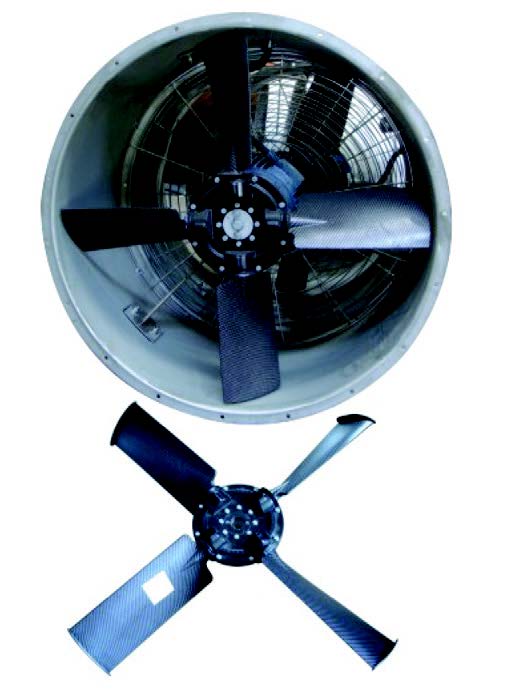

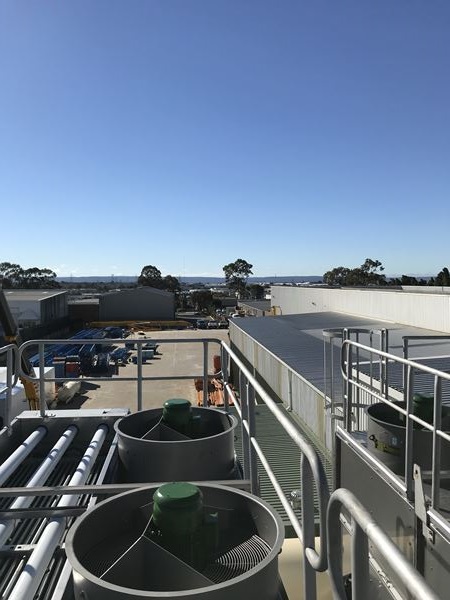

Axial Fan: The evaporative condenser of SPL range utilizes a forward curved carbon fibre fan blade. This helps with noise abatement and less energy use with the light weight of the fan blade. The motor is TEFC & MEPS rated directly coupled to the fan blade. |
 |

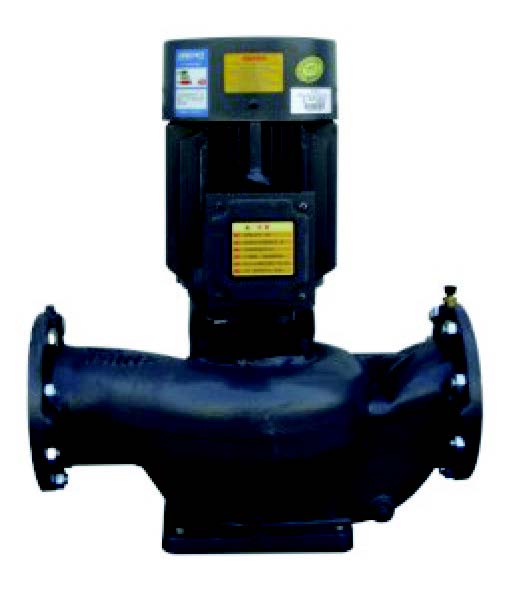

Spray Pump: Is TEFC motor close coupled inline pump configuration mechanical shaft seal Large flow and low noise. |
 |

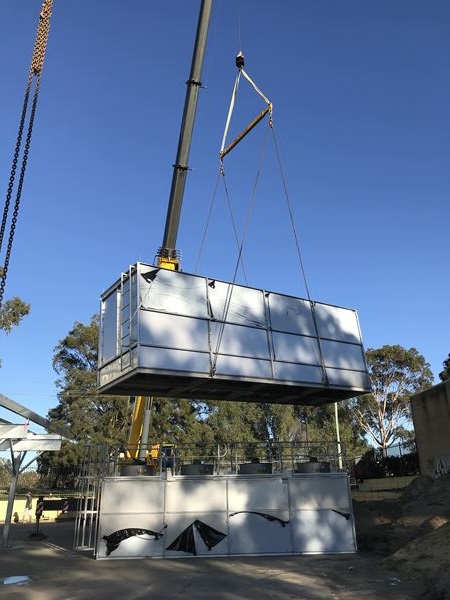

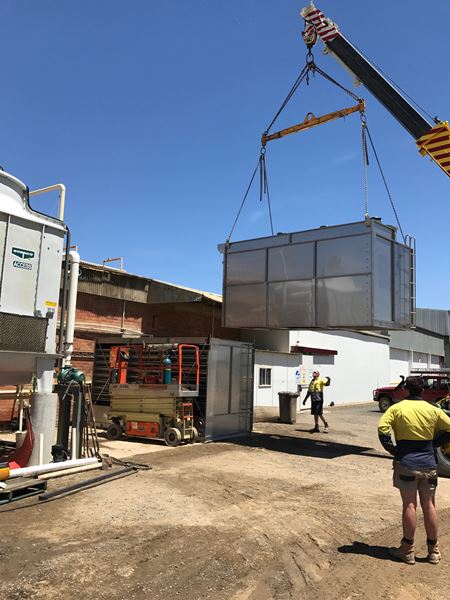

Casing, Basin + Hardware: The casing is made from 304 stainless steel sheet 2.4mm thick and fixed with stainless steel hardware, whilst the basin has an integral slope for easier cleaning. The condenser is able to be transported on standard in gauge freight and comes in two halves for easy site assembly. |
 |

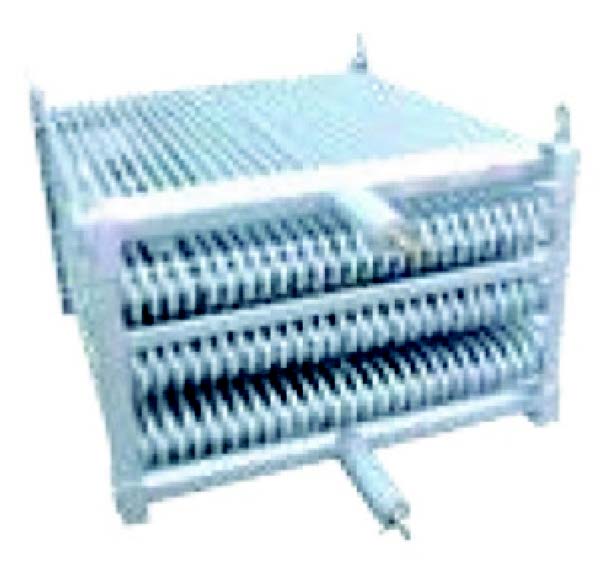

Condensing Coils: The condensing coil are made from high quality carbon steel tubes 1.5mm thickness pneumatically tested 3 times to 2.5Mpa. Hot dipped galvanized as standard. The slope of coils are free draining with minimum pressure drop. Stainless steel coils are an option. |
 |
Advanced Water Distribution: SPL evaporative condenser water spray system adopts large discharge and anti-blockage nozzles, which have an over lapping spray pattern ensuring the cooling water contacts the condensing coil and hence overcome the fouling and promote the moisture to vaporize, thus improving the effect of heat transfer. The nozzles can be easily removed from spray header pipes for cleaning. |
 |

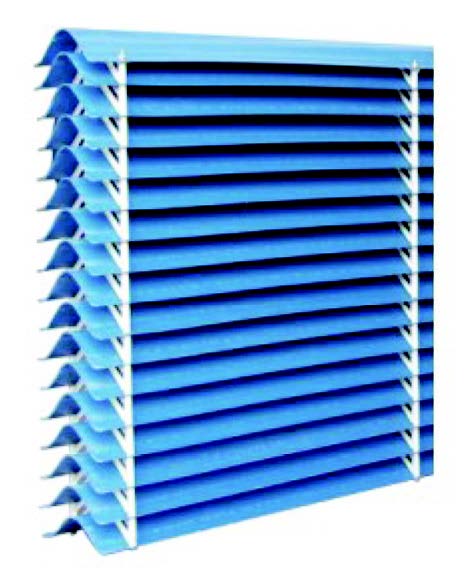

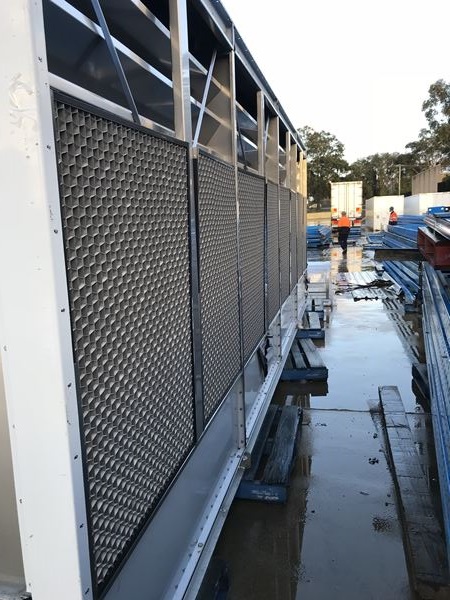

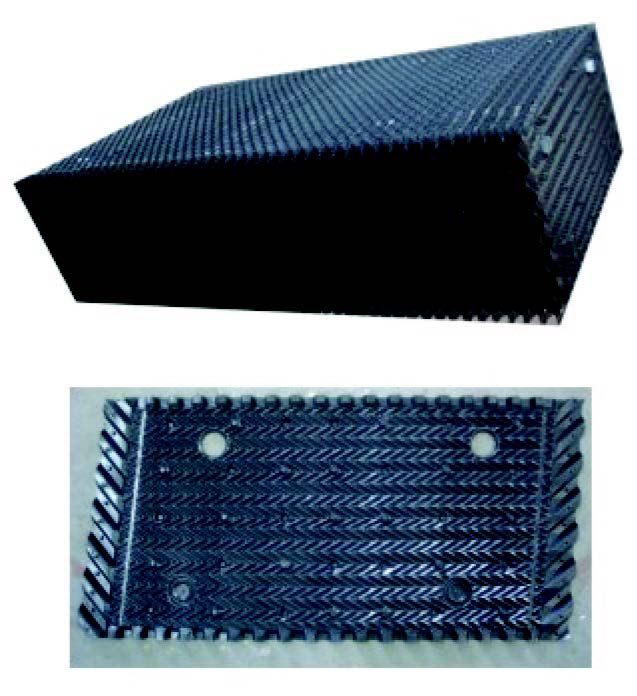

Drift Eliminators + Wet Deck: Both made from PVC which is impervious to rot and decay. Drift eliminators efficiently remove entrained moisture from leaving air stream down to 0.001%. Wet deck utilizes a honey comb type stuffing. The short horizontal air-inlet design can help the cool air take away the heat of water immediately. |
Check out our pdf General Brochure (8.38 MB) for more information on Evaporative Condensers
